Lab 2.4 - Ship reference data and a batch with deployment actions¶

Level: 2 Contributor advanced

Time: ~30 min

You will: meet the worst kind of failure, the one where nothing fails, and fix it with three deployment actions of three different kinds.

The situation¶

US-026 - Crew capacity reference data and nightly recalculation

As a planner, I want capacity rules per crew type and a nightly job that recalculates them, so that the planning board is right every morning and I get a summary of it in my inbox.

Acceptance criteria:

• 12 Crew Capacity records exist in every org
• The batch is scheduled nightly
• The planner receives the morning summary email

You build it, the deployment is green, everyone signs it off, and three weeks later a planner says the board has never updated. The metadata arrived. Nothing else did.

A deployment carries metadata. It does not carry records, it does not carry scheduled jobs, and it does not carry anything a human had to click in Setup. Every one of those has to be declared, or it happens once in your org and nowhere else, forever.

Before you start¶

• Lab 2.3 finished and merged
• helios-dev level with integration

Steps¶

1. Take the story and build the metadata¶

New User Story (2), under Project Contribution Workflow (1) of the DevOps Pipeline panel. Name US-026-crew-capacity-data, org helios-dev.

In helios-dev, create:

• A custom object Crew Capacity (Crew_Capacity__c), with:
  • External_Id__c, Text 40, External Id, Unique
  • Crew_Type__c, Picklist: Roof, Ground, Electrical
  • Roof_Type__c, Picklist: Tile, Slate, Flat, Metal
  • Panels_Per_Day__c, Number 3,0
• A tab for it, so the records can be found in the app: Setup > Tabs, New under Custom Object Tabs, object Crew Capacity, any tab style. Keep the profile visibility the wizard offers. On the last screen, Add to Custom Apps, untick Include Tab at the top of the list, then tick Helios Delivery alone: the other apps have no use for it
• An Apex class CrewCapacityBatch that recalculates Total_Capacity_kW__c on planned installations and that Salesforce can run on a schedule, plus its test class CrewCapacityBatchTest. You do not have to write these, and they are the one thing in this list you do not create in the org. From scripts/apex/samples/ in the repository, copy CrewCapacityBatch.cls, CrewCapacityBatchTest.cls and their two .cls-meta.xml files into force-app/main/default/classes/, in the Explorer, with copy and paste, as in Lab 2.3. What they compute matters far less here than the fact that somebody has to schedule them in every org, which is the whole point of the lab
• The access, on Helios Delivery Manager: Read, Create and Edit on Crew Capacity, Read and Edit on its four fields, and under Tab Settings on the same page, Available and Visible. Planners maintain these numbers, and it is also the permission set the pipeline's own user holds in every org: without it the data load of step 4 would find fields it is not allowed to write. The tab setting is what shows the tab in the other orgs, where the profile visibility you kept in the wizard never travels

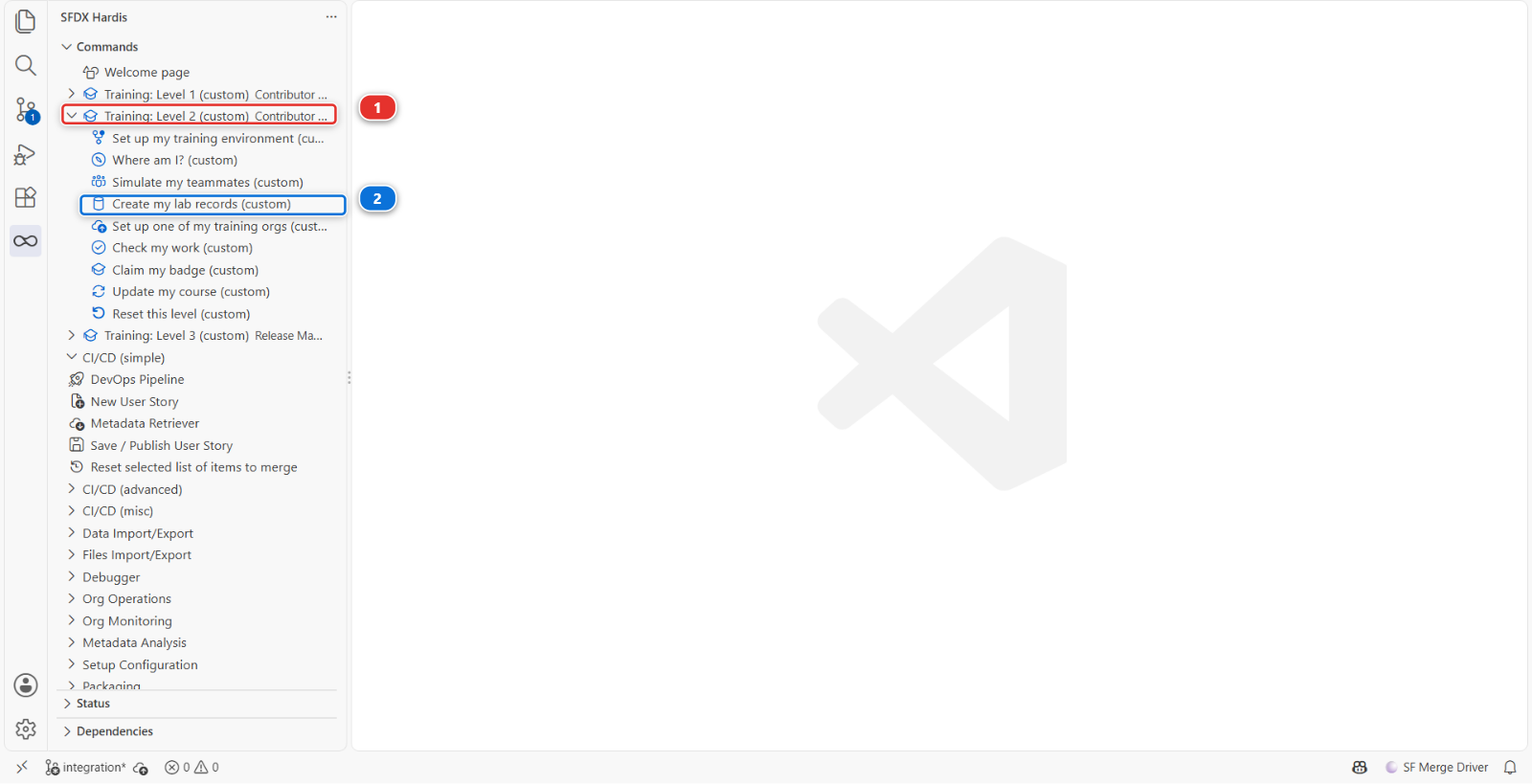

Then the records. Helios supports 12 combinations, three crew types by four roof types, and each one needs a Crew Capacity record saying how many panels a day that crew lays on that roof. Typing twelve records teaches nothing this lab is about, so the Training menu creates them: Training: Level 2 (1) > Create my lab records (2), pick Lab 2.4 - the 12 Crew Capacity records, then helios-dev, and answer Yes to Create them?.

The panel first checks that your object and its four fields are in the org, then creates the records, lists them, and ends with a See them in the org link. Open it, or open the Crew Capacity tab of the Helios Delivery app and pick the All list view: it reads 12 items (1), from CAP-ROOF-TILE to CAP-ELECTRICAL-METAL. If the panel says a field is missing, finish the object first, then run it again: it updates the same twelve records rather than creating more.

node scripts/training.mjs records

2. Publish and watch nothing fail¶

Retrieve the object, its fields, its tab, the Helios_Delivery app and Helios_Delivery_Manager with Commit changes. The two Apex classes are not retrieved: they are already files of the project, and Source Control lists the four you copied next to what you retrieved. Commit all of it, then Save / Publish, push, Pull Request. The check is green. Merge. The deployment is green.

Now open helios-integration and look:

• The Crew Capacity tab is in the Helios Delivery app, with zero records
• CrewCapacityBatch exists, scheduled nowhere
• Nobody checked that the org is allowed to send the batch's summary email

The feature is in the org and completely inert. This is worse than a failure, because a failure tells you.

3. Build a data workspace for the reference records¶

The story is merged, so what is missing goes into a second Pull Request for the same story. New User Story, name US-026-crew-capacity-actions, org helios-dev: a follow-up branch is how a team finishes a story, and sfdx-hardis says it itself at the end of every Save / Publish, do not reuse the same branch.

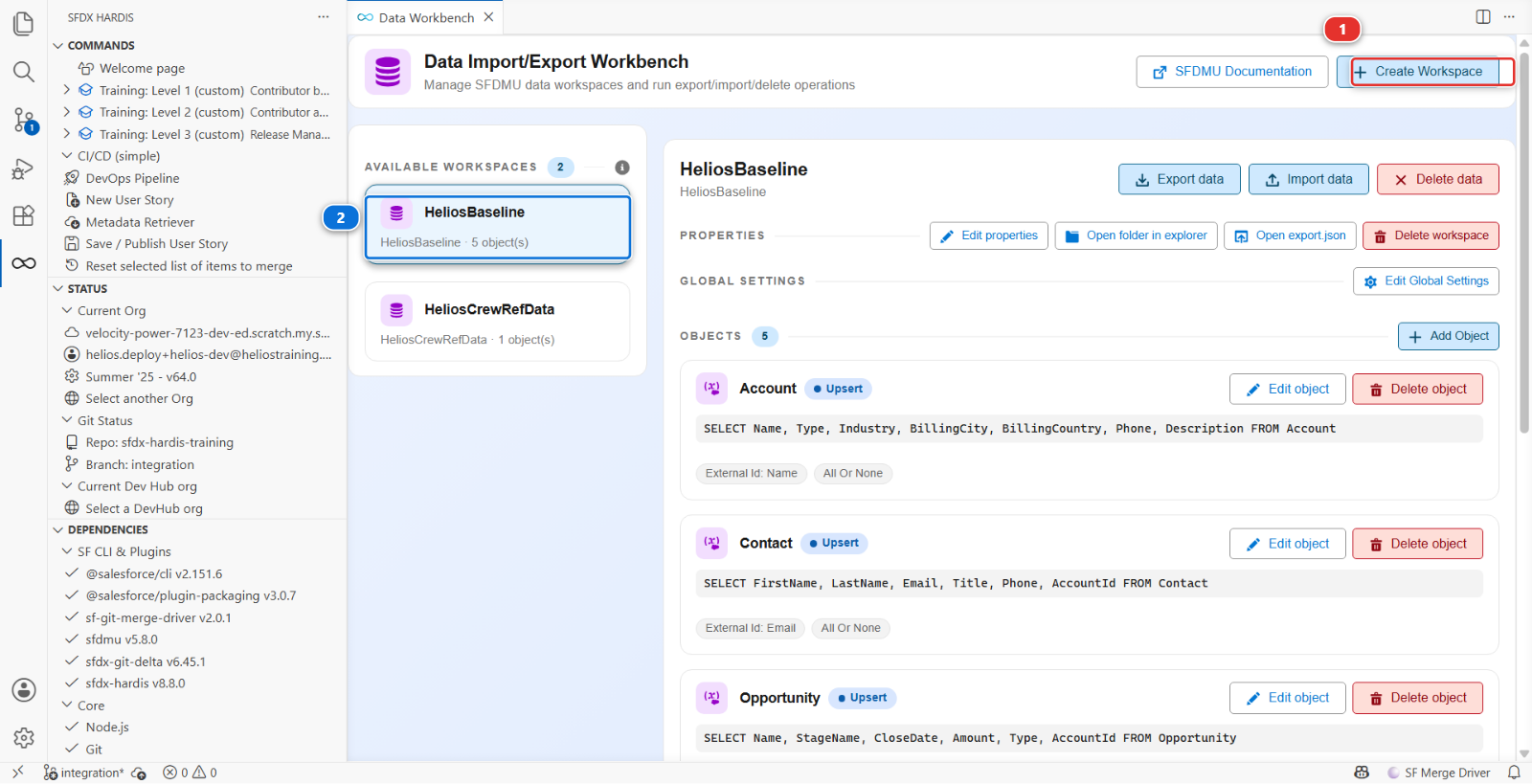

On the Welcome page, click Data Workbench. The panel that opens is titled Data Import/Export Workbench. Create Workspace (1) sits at the top right, and the workspaces the project already carries are listed on the left (2): HeliosBaseline is the one the Training menu uses to seed your org.

A workspace is a folder of CSV files plus the recipe that says which object each one fills and how. It is run by SFDMU, the data loader sfdx-hardis uses, and nothing in it is specific to one org.

The picture was taken at the end of this step, so it already lists HeliosCrewRefData under HeliosBaseline. Yours lists HeliosBaseline alone until you create it.

Create a new workspace:

1. Create Workspace (1), and fill in its three fields:
   • Workspace Name: HeliosCrewRefData, the name of its folder under scripts/data/
   • Display Label: Crew capacity reference data, the name the panels show, for example when you pick this workspace in a deployment action in step 4
   • Description: The 12 Crew Capacity records every org needs: panels a day per crew type and roof type.

2. Add Object, and paste this into SOQL Query. It names the object and the four fields you created:

   SELECT External_Id__c, Crew_Type__c, Roof_Type__c, Panels_Per_Day__c FROM Crew_Capacity__c


3. Operation: Upsert

4. External Id (for Upsert): External_Id__c

Then Export data. It asks two questions: whether to use your default org, helios-dev, and whether you confirm the export. Yes to both. The panel pulls your 12 records into scripts/data/HeliosCrewRefData/Crew_Capacity__c.csv.

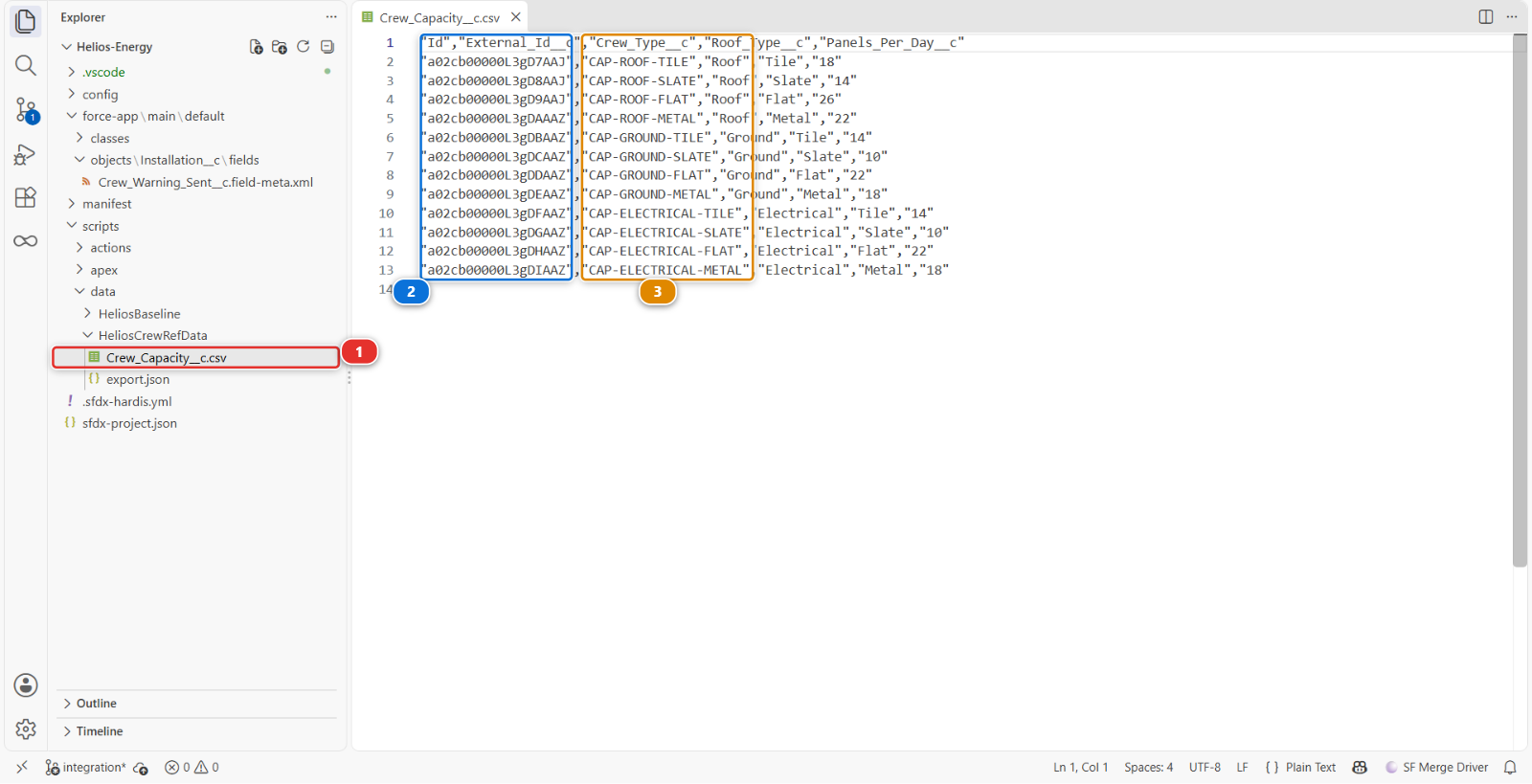

Open that file (1) and read it. Twelve rows, one column per field, each with a stable external id (3), and an Id column first (2): the record ids of helios-dev, which mean nothing anywhere else and which the import ignores, because it matches on the external id. That file is now versioned, reviewed and deployed like any other source. The logs, reports and target folders the export also wrote next to it are git-ignored: nothing to commit there.

4. Declare the three actions¶

Actions belong to a Pull Request, so it has to exist first: commit the workspace, its export.json and the CSV file, Save / Publish, and open the Pull Request. Then open it in the DevOps Pipeline panel, Deployment Actions tab, and add three.

One: load the reference data.

Deployment job only, not both jobs, because a validation job is a rehearsal: it checks the metadata and changes nothing. An import writes records for real, so it has no business running during a check.

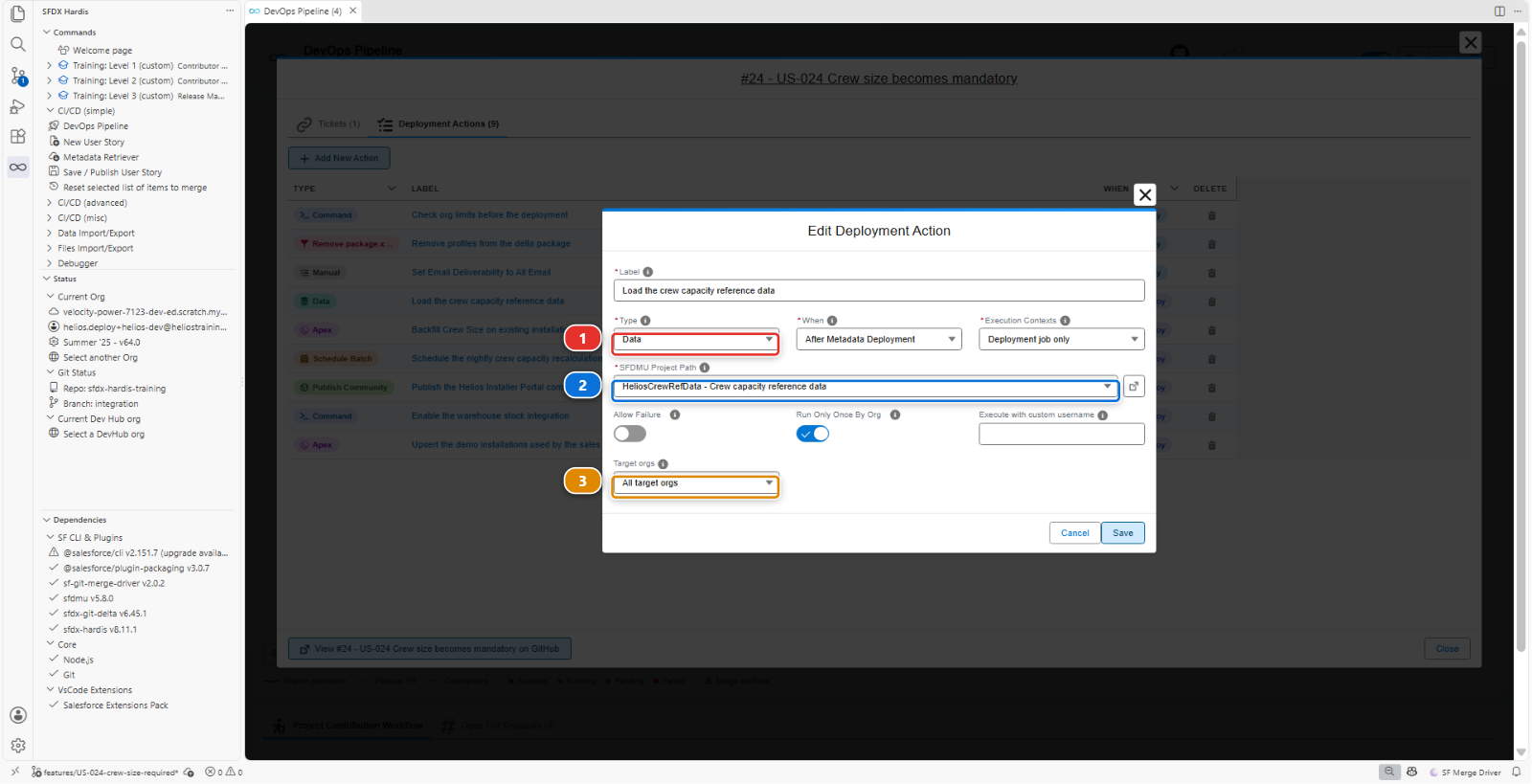

Type (1) decides which fields the rest of the dialog shows. SFDMU Project Path (2) is a dropdown of the workspaces under scripts/data/, so it names HeliosCrewRefData rather than its path. Target orgs (3) on All target orgs means every org the pipeline deploys to.

Two: schedule the batch.

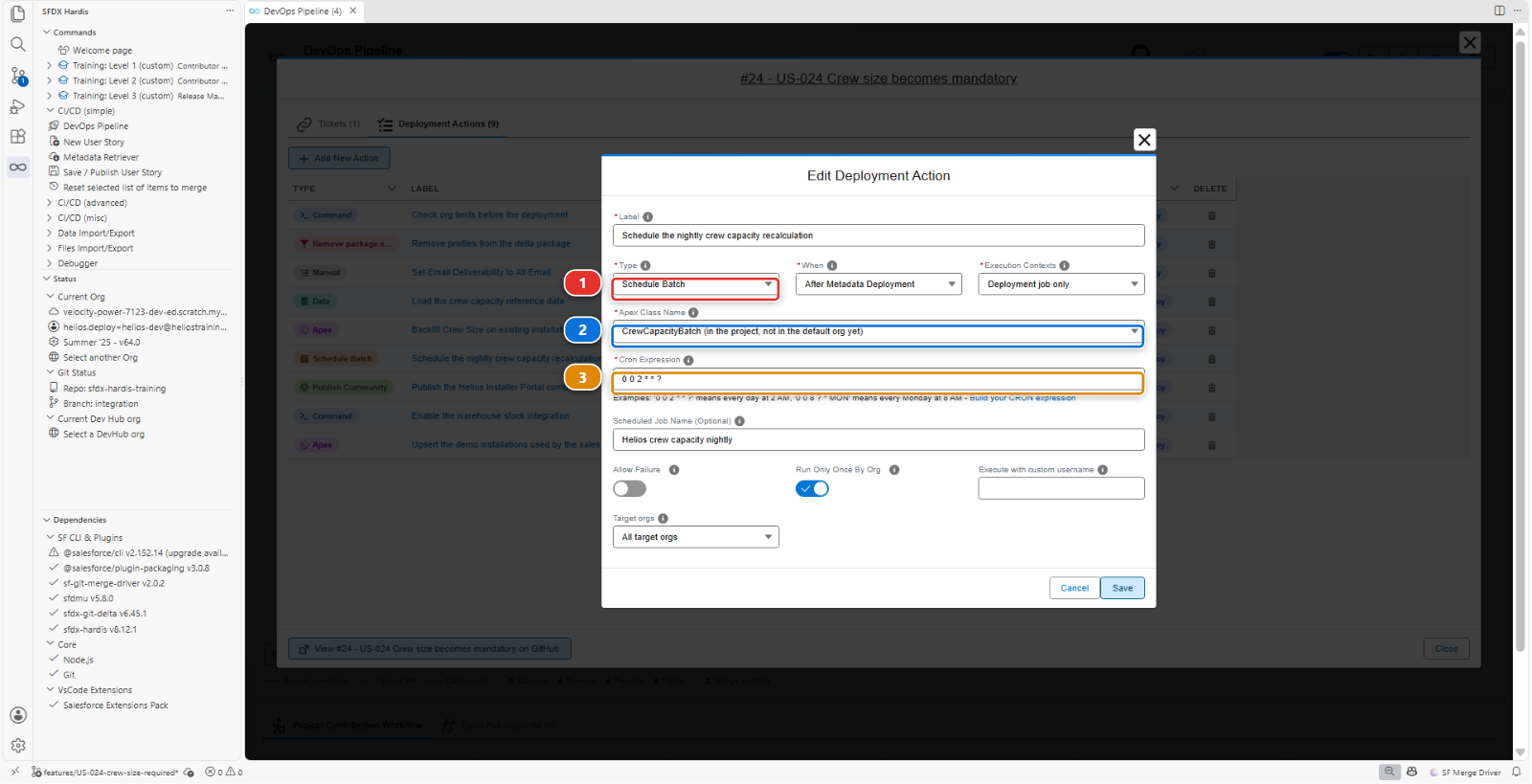

Schedule Batch (1) replaces the script field with two of its own: Apex Class Name (2), a dropdown of the classes Salesforce can run on a schedule, read from your default org and from the project, and Cron Expression (3), which the dialog explains with examples under the field.

In your list the class reads CrewCapacityBatch (in the project, not in the default org yet). That is expected, and it is the right one to pick: the class went from the repository to helios-integration through the pipeline and never to helios-dev, where you did not need it. The action runs in the orgs the pipeline deploys to, and the class is there before it runs.

Three: the one nobody can automate.

Some things have no API. Email deliverability is the best known one: whether an org may send email at all is a setting in Setup that no deployment can change. The batch emails the planner a summary when it finishes, and in an org where deliverability is not All email, that email is dropped without a word.

1. Open **Setup**, type `Deliverability` in the Quick Find box, and open it.
2. Under **Access to Send Email**, set **Access level** to **All email**.
3. Click **Save**.
4. Check: the page reads **All email**. If it already did, there is nothing to do.

On your scratch orgs it already reads All email, so the step takes ten seconds. On a real project it is the step people forget: every sandbox refresh puts a sandbox back to System email only, and the first sign of it is a planner asking why the summary stopped arriving.

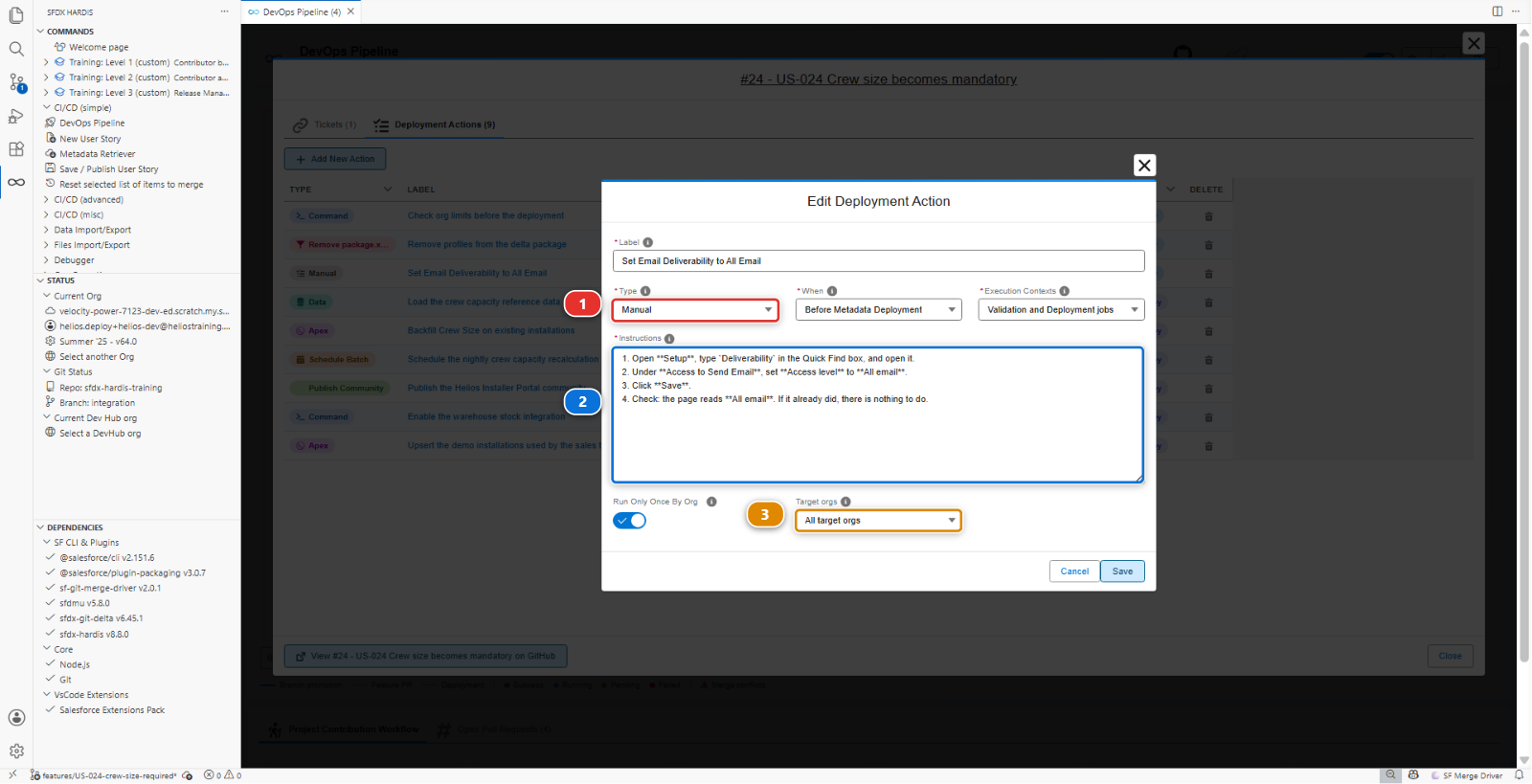

Manual (1) leaves one field that matters, Instructions (2), a multi-line box that takes Markdown: number the clicks, and finish with what the person should see afterwards. Target orgs (3) stays on All target orgs, because this click is needed in every org.

When is Before Metadata Deployment, unlike the two others. The org must be allowed to send email before anything that sends one arrives in it, so the person merging does this click first, then merges. A manual step declared before the deployment is listed first in the Pull Request comment, which is where they read it.

A manual step does not do anything. It appears in the Pull Request comment and in the deployment report, so the person releasing to production is told, in the release itself, that there is a click to make. That is the difference between a manual step that gets done and one that lives in a Confluence page nobody opens.

So write it for somebody who has never seen your story: every click, in order, with the exact names on the screen, and what the page shows when it is done, like the four lines above. The release manager does it in an org you have never opened, often on release day. If they have to guess what you meant, they will guess, and a wrong guess in production is worse than no step at all.

5. Read the Pull Request comment¶

The editor wrote the three actions into scripts/actions/, in a file named after your Pull Request. Commit it, Save / Publish.

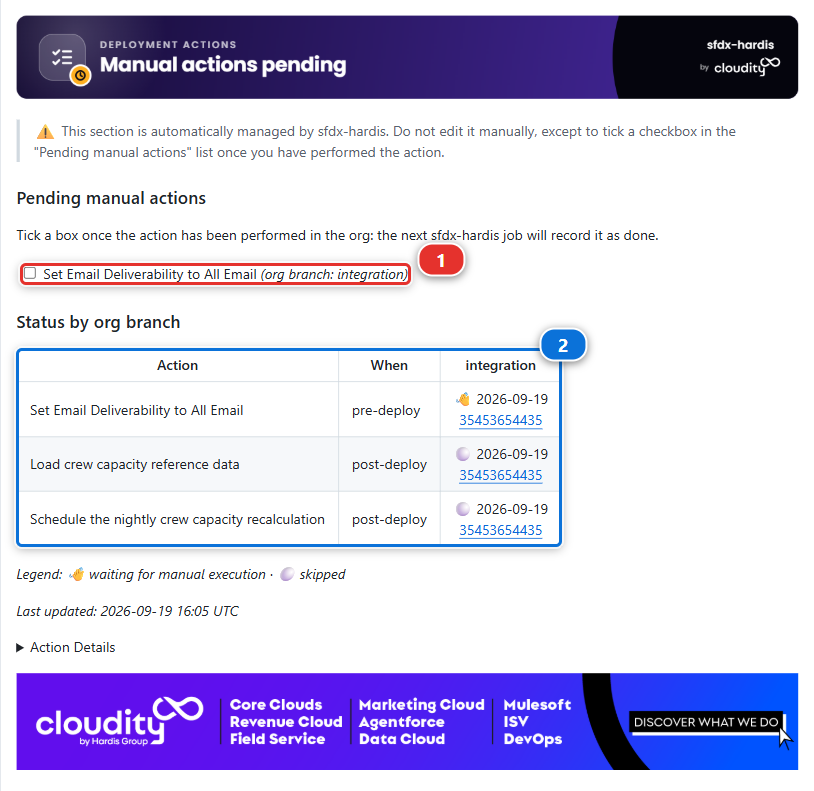

When the check finishes, sfdx-hardis posts a Deployment Actions comment on the Pull Request:

• Pending manual actions (1): your deliverability step, with a checkbox, for integration. Do the click in the org, then tick the box: the next job records it as done
• Status by org branch (2): one row per action, with its moment. The deliverability step, pre-deploy, waits for somebody; the import and the schedule, post-deploy, are marked skipped, because a check changes nothing

Merge, and watch the deployment job: the data import runs, the batch gets scheduled, and the manual step stays pending until a person says it is done.

6. Verify in the integration org¶

Do not take the green tick for it. Open the org and look:

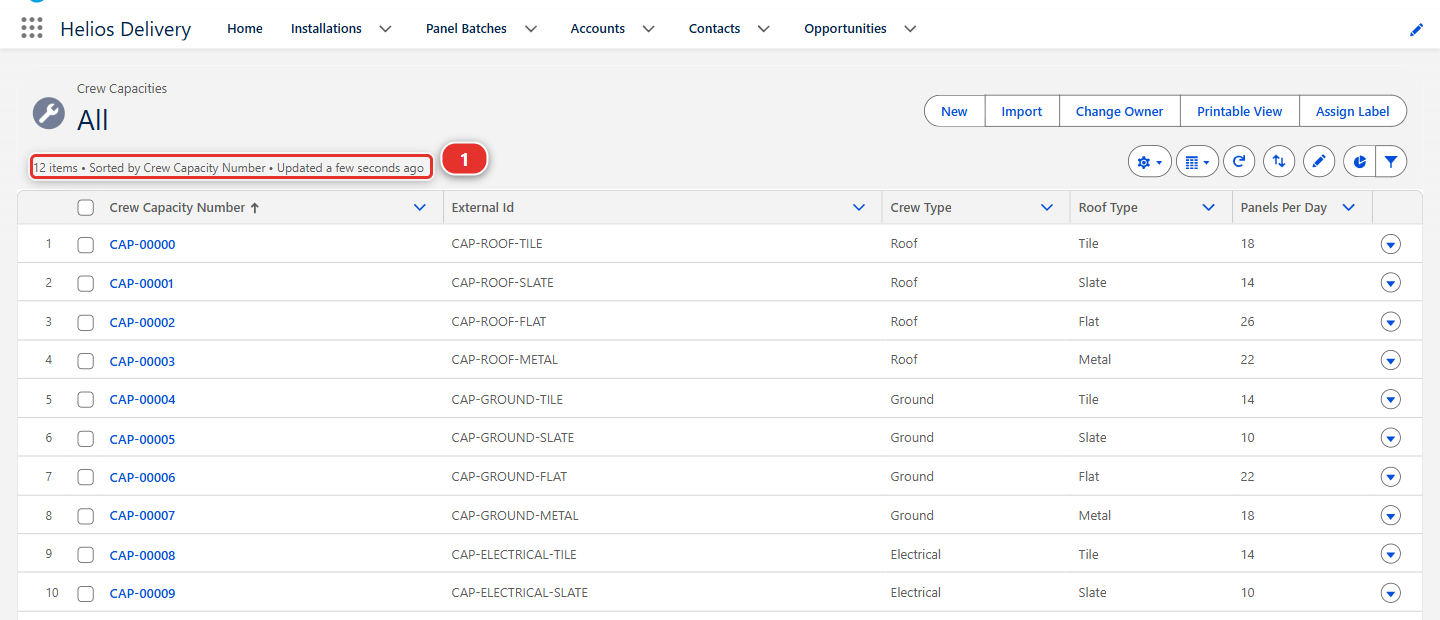

• The Crew Capacity tab of the Helios Delivery app, on its All list view, has 12 records
• Setup > Scheduled Jobs lists Helios crew capacity nightly
• The manual step is listed as still to do, because you have not done it

Do the manual step by hand in helios-integration, then tick its box under Pending manual actions in the comment on your Pull Request. A job reads the boxes of the Pull Requests it deploys, so this tick is recorded by the next job that carries US-026: the promotion to uat in Lab 3.5. Until then its row under Status by org branch still reads waiting, and that is expected. On a real release the person merging does the click and ticks the box before merging, and the deployment job records it at once. That is the point: you did it because the pipeline told you to, not because you remembered.

[WARNING] Describe failed for {Crew_Capacity__c}: The requested resource does not exist
[WARNING] {Crew_Capacity__c} is missing in the Target.
[WARNING] {Crew_Capacity__c} Object will be excluded from the process.
[WARNING] Object set 1 has no objects to process after validation. Skipping.
===== MIGRATION JOB ENDED =====
Command succeeded.
Exit code 0 (SUCCESS).

The habit behind all of this: a green deployment is evidence that the metadata went in, and evidence of nothing else. The org is the only thing that tells you an action ran.

commandsPreDeploy:
  - id: email-deliverability
    label: Set Email Deliverability to All Email
    type: manual
    parameters:
      instructions: |
        1. Open **Setup**, type `Deliverability` in the Quick Find box, and open it.
        ...
commandsPostDeploy:
  - id: load-crew-capacity
    label: Load crew capacity reference data
    type: data
    parameters:
      sfdmuProject: HeliosCrewRefData
    context: process-deployment-only
  - id: schedule-crew-capacity
    label: Schedule the nightly crew capacity recalculation
    type: schedule-batch
    parameters:
      className: CrewCapacityBatch
      cronExpression: "0 0 2 * * ?"
      jobName: Helios crew capacity nightly
    context: process-deployment-only
    runOnlyOnceByOrg: true

What you should see¶

• Twelve Crew Capacity records in helios-integration
• Helios crew capacity nightly in Setup > Scheduled Jobs
• The manual step listed in the deployment report, ticked off by you

Check your work¶

Welcome page > Training: Level 2 > Check my work, then pick Lab 2.4.

Go deeper¶

• Data workspaces with SFDMU
• Deployment actions

Next: Lab 2.5 - Pass the code quality gate and Apex test coverage
